What is a Solar Pile Driver?
A solar pile driver is a heavy duty machine used to install foundation piles for ground mounted solar panels and other outdoor support structures. It ensures stability, durability, and precise alignment of solar installations. The MW 1600-TX5 solar pile driver by Mazaka Heavy Industry is one of the most reliable and high performance models available on the market.
Key Technical Specifications of MW 1600-TX5
Engine and Power
- Equipped with a CAT Stage 5 engine
- Power output: 45 kW
- Eco friendly performance with a standard DPF filter
Hammer and Impact Performance
- Hammer power: 1500 Joule
- Operating pressure: 120 bar
- Impact frequency: 450 - 980 blows per minute
Hydraulic System
- Oil flow rate: 50 - 100 l/min
- Hydraulic pressure: 180 bar
- Oil tank capacity: 150 liters
Mast and Positioning Features
- Mast length: 6500 mm

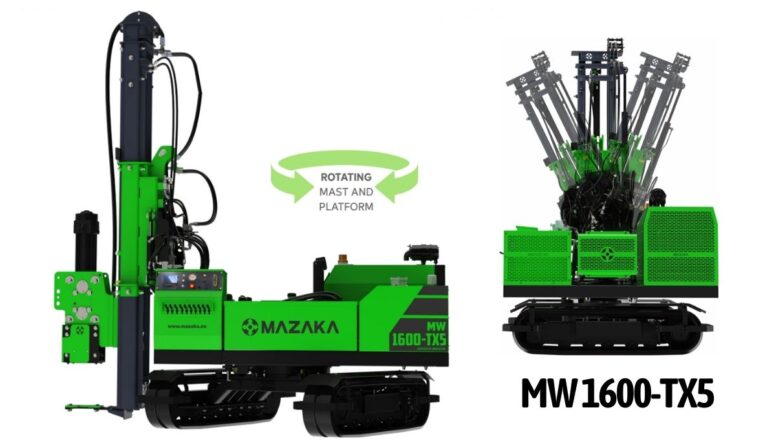

- 90° rotating platform and 15° side tilt for precise positioning
- Forward tilt: 20°
- Backward tilt: -75°
Mobility and Adaptability
- Travel speed: 2.2 / 4 km/h
- Handles 20% slopes and 10° side inclinations
- Available with rubber or steel tracks
Dimensions and Weight
- Transport dimensions: Width 2240 mm, Height 2315 mm, Length 4145 mm
- Working dimensions: Width 2240 mm, Height 3780 mm, Length 3800 mm
- Machine weight: 5200 kg
Advantages of Using MW 1600-TX5 Solar Pile Driver
- Precision in Installation: The rotating platform and tilt capabilities make it easy to achieve perfect pile alignment without frequent repositioning.
- Adaptability to Rough Terrain: Its ability to work on slopes and uneven grounds ensures efficiency in all environments.
- Energy Efficient and Eco Friendly: The CAT Stage 5 engine and DPF filter reduce fuel consumption and emissions.
- Versatile Applications: Suitable not only for solar power plants but also for infrastructure, fencing, and barrier installations.
- Operator Friendly Design: Stable hydraulics, reliable hammer performance, and easy maneuverability improve productivity and comfort.
Why Choose a Solar Pile Driver for Your Project?
Investing in a solar pile driver like the MW 1600-TX5 means faster project completion, lower labor costs, and long lasting solar installations. It is specifically designed to meet the needs of modern solar energy farms where precision and durability are critical.
